Use of IoT, ARTIFICIAL INTELLIGENCE in efficient operation, trouble shooting of corrugated plate interceptor (CPI)

Use of IoT, ARTIFICIAL INTELLIGENCE in efficient operation, trouble shooting of corrugated plate interceptor (CPI)

1. Overview: CPI in Oil-Water Separation

A Corrugated Plate Interceptor (CPI) is widely used in oil & gas, petrochemical, marine, and wastewater treatment facilities to separate free oil droplets from water.
The separation relies on gravity and increased surface area from inclined corrugated plates, which allow oil droplets to coalesce and rise to the surface for removal.

2. IoT Integration in CPI Operations

IoT technology enables real-time data acquisition, remote monitoring, and automated control for CPI units.
Key IoT applications include:

A. Performance Monitoring

• Oil-in-water analyzers at inlet and outlet to measure separation efficiency in real time.
• Flow meters to ensure design flow rates are maintained and avoid hydraulic overloading.
• Temperature sensors to detect changes that might affect separation efficiency.
• Differential pressure (ΔP) sensors across the CPI plates to detect fouling or blockages.

B. Predictive Maintenance

• Continuous data from vibration sensors and structural health monitors can detect early signs of mechanical failure.
• Plate fouling detection using ultrasonic or camera-based sensors to trigger cleaning schedules.

C. Remote Control & Alerts

• IoT gateways connect sensors to a central control system or cloud dashboard.
• SMS, email, or SCADA-based alarms notify operators of deviations (e.g., sudden oil breakthrough, abnormal flow rates).

3. Artificial Intelligence in CPI Operations

AI builds on IoT data to improve decision-making, predict failures, and optimize performance.

A. AI-Driven Efficiency Optimization

• Dynamic flow rate adjustments: AI algorithms adjust inlet flow to maximize oil-water separation based on real-time water quality.
• Adaptive cleaning schedules: AI uses historical fouling data to determine the best time to clean plates, reducing downtime and extending service life.

B. Predictive Failure Analysis

• Machine learning models analyze pressure, flow, and oil concentration trends to predict plate clogging, corrosion, or wear.
• Detects early-stage malfunction that human operators might overlook, preventing sudden breakdowns.

C. Automated Troubleshooting

• AI compares current sensor readings with historical “healthy” operational patterns to diagnose problems such as:
  • Inlet turbulence
  • Improper plate inclination
  • Emulsified oil carryover
  • Flow surges
• Generates root cause analysis reports with suggested corrective actions.

D. Integration with Plant-Wide Systems

• CPI data can be linked to upstream API separators or downstream polishing units (coalescers, dissolved air flotation, membrane filters) for plant-wide optimization.

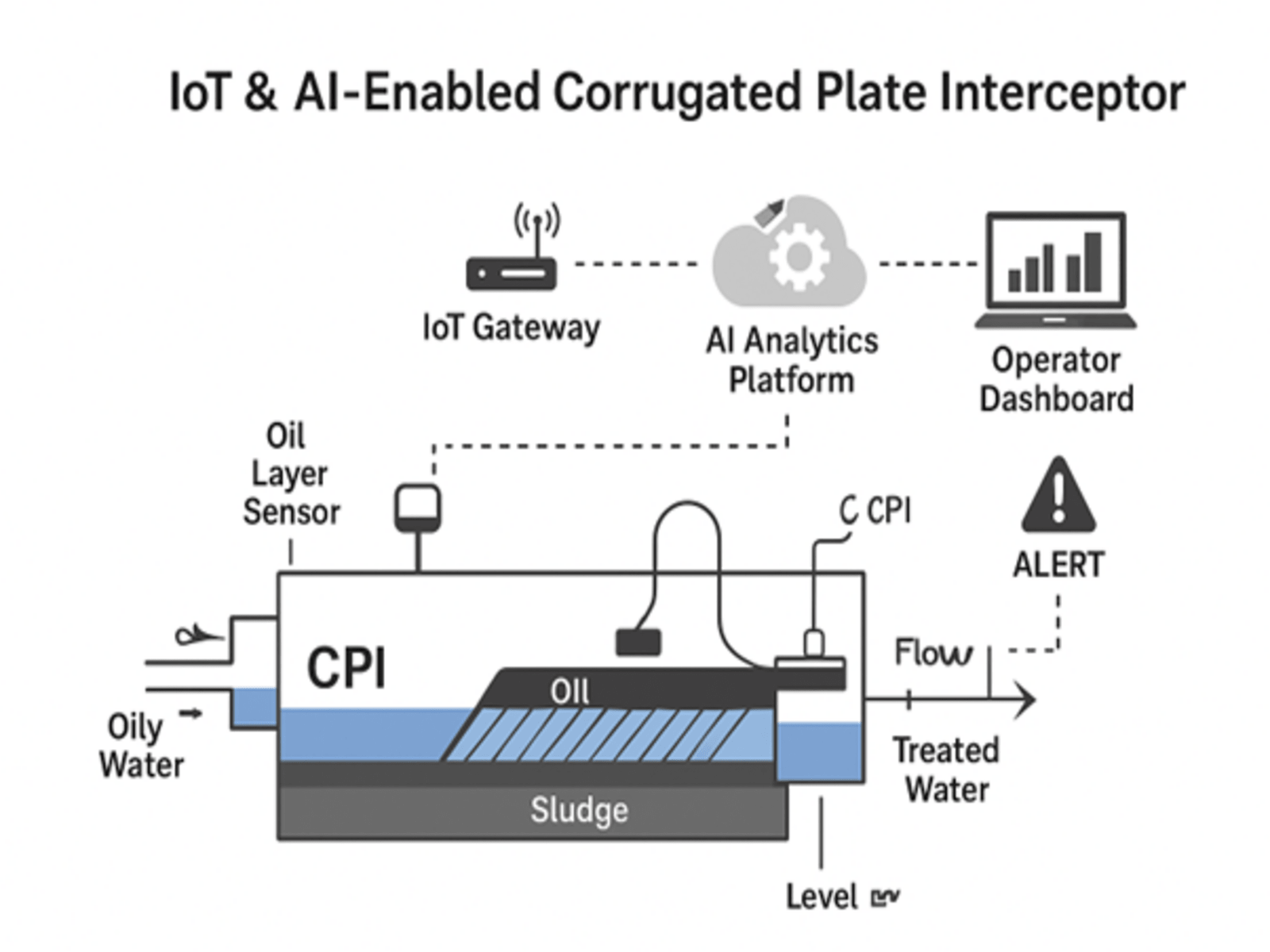

4. Example: AI & IoT-Enabled CPI Workflow

1. Sensors on CPI collect flow, pressure, oil content, and temperature data.
2. IoT gateway sends data to cloud or SCADA.
3. AI analytics platform processes live and historical data.
4. AI flags:
   • Gradual efficiency drop → possible fouling.
   • Oil spikes at outlet → possible plate misalignment or hydraulic surge.
5. Automated alerts sent to operators with recommended maintenance or process adjustments.

5. Benefits of IoT & AI in CPI

• Higher separation efficiency through real-time optimization.
• Reduced unplanned downtime via predictive maintenance.
• Lower operational costs by avoiding over-cleaning or unnecessary shutdowns.
• Improved compliance with environmental discharge limits.
• Better asset lifespan through early fault detection.
