Axial Flow Pump Manufacturer

Principles and Industrial Significance

Axial Flow Pumps are a critical selection in the majority of large scale industrial, agricultural, and municipal water applications, particularly in those applications involving the transportation of high volumes of fluid at relatively low heads. Unlike centrifugal pumps, which offer radial fluid flow, axial flow pumps move liquids in a parallel direction to the shaft, hence the name “axial.” This design architecture offers unrestricted and uniform flow, making them highly efficient in handling high-capacity operations without wastage of energy.

Our specialty at Waterman Engineers Australia is in the manufacture and design of bespoke axial flow pumps tailored to the stringent needs of modern industrial use. Having extensive experience in fluid handling systems, our specialty allows us to produce pumps that operate efficiently under fluctuating environmental and mechanical conditions. Our axial flow pumps are of a simple design, easy to maintain, and have excellent hydraulic performance.

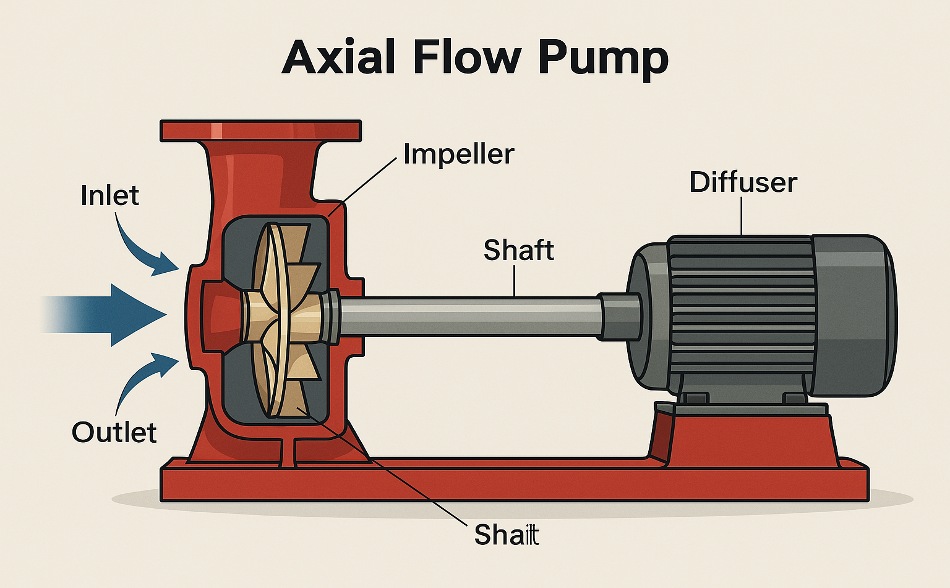

One of the significant structural benefits of an axial flow pump is its optimized flow path and impeller design. The blades of the impeller in these pumps are generally long and aerodynamically designed, rotating inside a fixed casing that provides the facility to change the direction of flow. When the impeller rotates, it transferred kinetic energy to the fluid, which is converted to pressure energy inside the diffuser section. This mechanical configuration allows the pump to transport extremely high volumes of water up to hundreds of thousands of gallons per minute having heads generally less than 30 meters.

Axial flow pumps are best suited to applications with high flow rates and relatively low discharge pressures. They are extensively used in flood control systems, water treatment plants, power generation plant cooling water recirculation, drainage and irrigation systems, and seawater intake systems in desalination plants. The agricultural sector as a whole can benefit substantially from their use in canal raising, pond irrigation, and monsoon-season drainage. Similarly, chemical processing or thermal energy production industries depend on these pumps for the trouble-free and high-volume transfer of liquids.

Their performance features also position axial flow pumps as energy efficient. Since flow is in straight axial direction with little change in direction, there are lower mechanical losses than other types of pumps. This has the effect of lower cost of operation over the long term, which is highly desirable in situations where 24/7 operation is the practice in industries. The design of the impeller can also be tailored to the exact flow and head requirements to enable flexible operation in both temporary and permanent arrangements.

From a maintenance point of view, axial flow pumps tend to be favored because of their comparatively straightforward design. At Waterman Engineers Australia, we provide both cast and fabricated designs based on the particular needs of the project. The back pull-out design incorporated in some cast designs makes it possible to remove the rotor assembly without having to disassemble the entire pipeline, thereby significantly minimizing downtime when maintenance is performed. This is especially useful in applications that are deemed mission critical, where uninterrupted service is paramount.

Materials used in construction form the backbone of the longevity of axial flow pumps. A wide range of corrosion-resistant material is used, ranging from stainless steel, duplex stainless steel, to bronze alloys, and special coatings, to impart long term resistance to aggressive fluids such as seawater, industrial effluents, and brine. Material selection is carefully matched with the nature of the application and the expected conditions of the environment. For seawater or brackish water applications, for instance, marine-grade alloys or protective linings are recommended to enhance the pump’s durability.

Waterman Engineers Australia incorporates innovative technologies into its axial flow pump designs, including adjustable impeller blades to provide variable control of the flow, sophisticated sealing devices to provide leakage-free operation, and vibration control systems to provide stable operation. Our design teams also carry out very stringent Computational Fluid Dynamics (CFD) analysis at the design stage to optimize the flow patterns, minimize turbulence, and provide lower hydraulic losses.

The axial flow pump is not a standard pump; it is a specially constructed equipment for high-capacity operations where standard pumps would not be able to perform at their optimum. At Waterman Engineers Australia, we are experts at delivering robust, energy-efficient, and precise pumping solutions that are long-lasting and resilient even in the most challenging working conditions. Our commitment to quality, innovation, and customer satisfaction ensures that all axial flow pumps produced in our factory are up to international performance standards and exceed customers’ expectations.

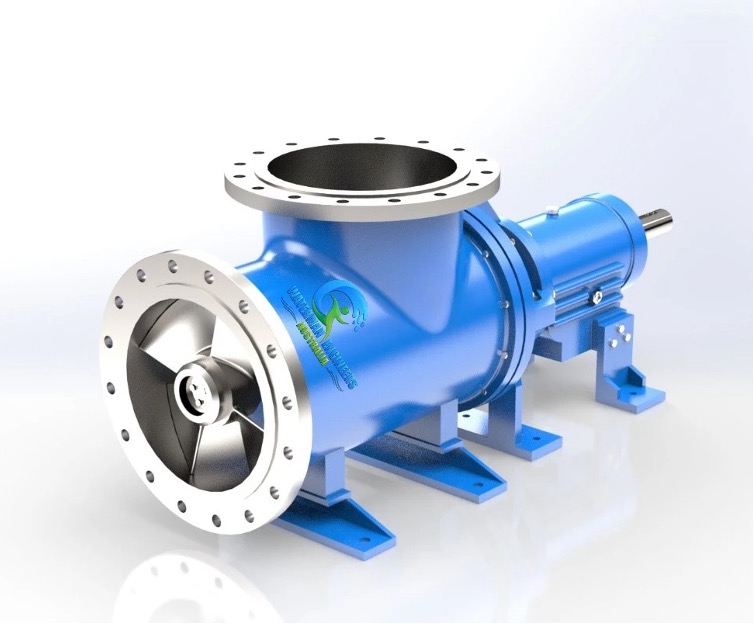

Axial Flow Pump (Casted Back Pull Out)

At Waterman Engineers Australia, the AF-16 Bare Pump is among our top and most effective axial flow pumps. It is designed with a straightforward structure that is easy to operate and highly effective. The AF-16 is designed for easy maintenance and durable use. It is constructed with a robust cast body that makes it durable without increasing additional vibration and noise when operating for an extended period.



The pump’s back pull-out is one of its most significant attributes. It facilitates the pulling of the rotor assembly, including the impeller, shaft, and bearing housing, out of the casing without impacting the mounted pipes. This is particularly useful in massive industrial operations where shutting equipment down can be extremely expensive. Maintenance personnel can reach and fix critical internal components without having to disassemble the entire pump system, which is labor- and time-saving.

The AF-16 is able to fulfill medium to high flow demands in most industrial uses, such as conveying cooling water in power plants and conveying seawater and waste water in coastal plants. The pump’s durable construction also resists wear, even in hostile environments or in the presence of particles in the fluid.

Waterman Engineers Australia produces the model in various versions for various applications, with the nature of the fluid, flow rate, and pressure of the head in mind. The impeller is constructed semi-open or closed according to the needs of the customer and balanced to function properly without vibrating. The impeller and shaft are constructed of high-quality stainless steel or bronze that does not cause corrosion, providing them with strength.

Each AF-16 pump undergoes rigorous quality control and hydraulic testing in order to determine its flow rate, pressure rating, and mechanical efficiency prior to shipping from our factory. This level of quality control is the standard of our manufacturing processes, and it has allowed Waterman Engineers Australia to become a reputable company in fluid handling systems in industries.

Performance Characteristics and Energy Efficiency

Axial flow pumps have high capacity in transferring a tremendous amount of liquid at a relatively low height and, therefore, they are quite efficient. Axial flow pumps require less power per unit amount of liquid being transferred compared to some other types of pumps, e.g., radial or mixed flow pumps. It is consequently extremely useful to transport a vast amount of liquid, e.g., hundreds of cubic meters a minute.

In big water transfer systems such as irrigation canal lifts and rainwater drainage, the application of axial flow pumps can reduce the cost of ownership by reducing energy consumption in the long term. These pumps are designed to have a smooth flow pattern, such that turbulence is minimized and excessive pressure fluctuations are eliminated, thus ensuring stable operation under fluctuating loads.

Waterman Engineers Australia has a strong emphasis on conserving energy in the design and manufacture of every pump. Our engineers are meticulous in selecting suitable motor specifications, impeller design, and diffuser design to meet the particular requirements of a project. In this way, not only do we maximize the performance of the pumps, but we also enable our customers to conserve a significant amount of energy over the equipment lifespan.

Our axial flow pump designs are variable speed driveable. This provides the users with the convenience to adjust the speed of the pump according to their requirements. This provides flexibility and avoids over-pumping or wastage of energy. Moreover, real-time performance monitoring can be integrated to track efficiency, wear, and vibration, which avoids breakdowns.

Durability and Material Selection

Axial flow pumps have a built-in strength, especially those manufactured by Waterman Engineers Australia. Different uses like freshwater supply, seawater lift, or industrial wastewater treatment need different things in terms of chemical safety and the level of wear and tear they might withstand.

Therefore, the selection of materials for our pumps is not standard for all cases; it is done for particular requirements. For AF-16 and other such models, we have choices of high-chrome stainless steel for harsh conditions, duplex stainless steel for corrosive chemicals, and bronze alloys for sea water applications. If additional protection than the standard materials is required, we have epoxy coatings or rubber linings to minimize corrosion and deposits.

Our fabrication and foundry work is regulated strictly to achieve uniform metal quality, strong castings, and accurate measurements. All pumps are built to ISO and API standards where required so that customers can have confidence that they are buying good equipment backed by experienced engineers and good service back-up.

Axial Flow Pump (Fabricated)

Yet another strong and highly versatile product by Waterman Engineers Australia is the Axial Flow (Fabricated) 30-Bare Pump, designed particularly to fit a wide variety of high-capacity, low-head pumping applications with maximum reliability and efficiency. The pump features fully fabricated construction unlike cast models, and it is suitable for increased capacities and specialty applications where design flexibility and material choice are key considerations.

The 30-Bare axial flow pump, which is manufactured by us, is particularly popular for large-scale infrastructure development projects like water treatment facilities, irrigation networks, stormwater drainage networks, and coastal desalination facilities. The fact that the design is manufactured enables us to customize dimensions to fit specific site conditions and project requirements. Regardless of whether the installation is to be vertical, horizontal, or angled, our design engineers can make fine adjustments during fabrication, thereby ensuring smooth integration into the client’s existing infrastructure.

Manufactured pumps have several self-evident benefits over casted designs. Firstly, they are lighter, and it is simpler to transport and install them, especially when installing large units in hard-to-reach or remote areas. Secondly, manufactured axial flow pumps can be made of a wider variety of materials that are corrosion-resistant, such as carbon steel with coatings, stainless steel, and special alloys for the treatment of aggressive chemicals. This makes them the most suitable option for the application of brine, seawater, sludge, or industrial waste.

The 30-Bare pump features replaceable liners and wear rings. These make the pump durable and less maintenance-intensive in the long run. The bearing assembly and the shaft are designed to withstand powerful forces with minimal vibration. The design of the impeller is fixed or adjustable, depending on the usage of the pump in various applications.

All axial flow pumps produced undergo a rigorous series of factory tests, such as hydrostatic pressure testing, performance qualification, and vibration analysis. The staff employs sophisticated fluid dynamics and structural simulation computer codes to model the pump’s operation before it is manufactured. This pre-manufacturing engineering ensures that the final product will deliver consistent output and will be able to withstand the rigors of long-term industrial application.

In addition to our on-site services for the commissioning and alignment of engineered axial flow pumps at Waterman Engineers Australia, we provide comprehensive technical support, peak performance optimization, and long-term scalability concerns addressed—services that we include in our turnkey pump packages.

Custom Variants and Modular Configurations

While the casted and manufactured axial flow pumps constitute the bulk of our product line, Waterman Engineers Australia also has on offer customized versions and modular units to cater to specific industry requirements. As an example, we have axial flow pumps for vertical wet pit application, where the motor is above the pump but the impeller is underwater. These are suited for drainage systems, pumping stations, and reservoirs.

Submersible axial flow pumps can also be had for small footprint and low surface infrastructure requirements in applications. They are generally utilized in flood conditions or limited space situations and utilize hermetically sealed motors for submergence service. Submersible models provide low-noise operation and simple installation, particularly for emergency water control or temporary pumping station applications.

We also provide multi-stage axial flow pumps that are appropriate for applications where relatively higher heads are needed but the same flow rate. By having two or more impellers in series in a single casing, these pumps provide higher pressure without the need to use different pump types that might not be able to efficiently handle the desired flow volume.

In addition, Waterman Engineers Australia has also developed plug-and-play modular pump skid systems where the axial flow pump is installed on a steel skid with a drive motor, gearbox, coupling, and control panel, all pre-aligned and pre-tested. The plug-and-play units are best suited for rapid deployment in disaster relief, construction dewatering, or temporary agricultural applications.

The intrinsic flexibility of axial flow pumps makes them an incredibly appropriate choice for engineers, consultants, and contractors for high-capacity, energy-efficient, and low-maintenance applications. With a range of detailed customization possibilities, material specifications, and structural configurations, Waterman Engineers Australia continues to assist industries worldwide with cutting-edge axial flow pumping solutions.

Industrial Applications and Performance Optimization

Axial flow pumps are able to transport a great volume of fluid at low heads and are of utmost significance in all major industries. Axial flow pumps are utilized in applications from agriculture to sewage treatment to assist in the transportation of fluids steadily and efficiently through long systems. Not only do we manufacture axial flow pumps at Waterman Engineers Australia, but we also create pumping solutions that meet specifications in real-life situations.

Axial flow pumps are typically used for lifting water from canals and irrigation. They transport a great deal of water over short elevations, making them ideal for farms, particularly in nations with big fields and fluctuating water levels. The pumps can be installed straight up or at an angle in sump wells or canals, meaning less of a requirement for elaborate buildings.

For urban stormwater drainage and flood management, axial flow pumps serve as lifelines during emergencies and heavy rainfall. Their large flow rate facilitates the diversion of water from urban low-lying areas to prevent flooding and save infrastructure. Interchangeably employed according to site design are submersible and dry-installed axial flow pumps, both of which are locally produced in-house by Waterman Engineers Australia to meet local hydraulic profiles.

The desalination plants, particularly their coastal ones, also rely on axial flow pumps to pump seawater to treatment plants. Material choice in such installations is of utmost importance because seawater is corrosive. Waterman Engineers Australia offers duplex stainless steel as well as epoxy-coated options for such marine applications, which will provide a long service life with minimal maintenance.

Axial flow pumps are utilized in condenser cooling systems for power generation, where huge quantities of water must be transported at all times. They maintain the heat in balance, particularly in thermal and nuclear power plants, by supplying constant flow of coolant with minimal energy consumption. Our pumps are designed with high-performance impellers and well-designed bearings to operate continuously without compromising performance.

Another developing field of application is in aquaculture and fisheries, where water exchange, oxygenation, and flow simulation are critical. Axial flow pumps create stable flow conditions in hatchery tanks and artificial lakes, which are ideal for aquatic conditions. Flow-tuned impeller axial flow models created from prototype axial flow models are best suited for such purposes.

Technical Parameters and Design Adaptability

The design of the axial flow pump is fundamentally dependent on three parameters, which are head, rotational speed, and flow rate. These three parameters are accurately calibrated by our design engineers based on client specifications. For example, where there is high demand for flow rate but with system head less than 10 meters, the pump is designed to operate at low rotational speeds with wide impeller blades and high discharge diameter.

Impeller design plays a major role in pump performance. Waterman Engineers Australia provides fixed and adjustable-blade impellers. Adjustable blades enable discharge characteristics to be trimmed exactly even after the impeller has been installed, which is very handy for systems where water levels or load conditions vary throughout the year.

Shaft length, column pipe size, bearing spacing, and seal type can all be varied depending on whether the pump is dry-mounted, semi-submerged, or submerged. Shafting systems from us are backed by water-lubricated bearings or oil-lubricated bearings depending on application. In each design, we provide the optimal alignment and minimum vibration with advanced machining and balancing techniques.

Electric motors, diesel engines, or turbines can power the pump motors with VFD capability for precise control of flow rates. In their heavy-duty application, we also include self-cleaning strainers, backflushing systems, and corrosion monitors to protect pumps from internal damage and extend intervals between maintenance cycles.

Quality Assurance and After-Sales Support

Quality assurance is the core of every pump that we manufacture at Waterman Engineers Australia. Every cast and fabricated axial flow pump is inspected in-process and tested in final performance. Our workshops are equipped with flow benches, vibration analyzers, and computerized test rigs to test efficiency, pressure, and operating conditions prior to delivery.

Besides product quality, clients enjoy a comprehensive after-sales service network. We provide on-site installation commissioning, performance test audit, retrofitting, and repairs, so that the pump functions precisely as designed, even after years of installation. Spare parts such as shafts, impellers, and bearing cartridges are inventory-stocked for immediate delivery and reduced downtime.

We also help our customers with the delivery of technical data, CAD data, user manuals, and maintenance charts, thus helping their personnel operate and maintain the pumps efficiently. Training courses, provided in virtual and on-site environments, form part of our comprehensive customer support program.

Our engineering group continues to invest in R&D, developing new technologies such as smart sensors, remote monitoring via IoT, and AI-based flow forecasting to power the next generation of axial flow pumping systems. These technologies, coupled with our decades of manufacturing experience, make Waterman Engineers Australia a respected global brand in the fluid handling industry.

FAQS

Q1. What is the primary difference between axial flow pumps and other types of centrifugal pumps?

The principal distinction rests on the flow direction and performance. Axial flow pumps displace fluid parallel to the shaft of the pump (axial direction), hence the suitability in the case of applications demanding highly elevated flow rates and low heads (usually below 10 meters). Standard centrifugal pumps displace fluid in the radial direction and are most applicable in high head, low flow applications. Axial flow pumps are extensively employed in irrigation, drainage, flood control, and cooling applications.

Q2. Where are axial flow pumps commonly used, and why are they preferred in such industries?

Axial flow pumps are applied on a broad scale in agriculture (irrigation), flood control, desalination plants, power plant cooling water recirculation, aquaculture, and water supply systems. They are chosen due to their ability to manage large quantities of liquid with high efficiency, save energy at low heads, and can be installed vertically or horizontally to suit a broad range of operating conditions.

Q3. What are the benefits of fabricated versus casted axial flow pumps?

Fabricated axial flow pumps provide increased design flexibility and customization, which allows for effortless scaling and modification to meet certain site conditions. The pumps are light in weight and can be constructed using corrosion-resistant materials like stainless steel. Cast axial flow pumps, such as the AF-16 Bare Pump, ensure durability, tolerance of dimensions, and durability, particularly for rigorous applications. Waterman Engineers Australia produces both kinds to meet the needs of various projects.

Q4. How does Waterman Engineers Australia ensure the quality and reliability of its axial flow pumps?

Waterman Engineers Australia maintains strict quality control procedures, such as in-process inspection, dynamic balancing, computer test running, and material traceability. Every pump is tested to performance, and customers are given comprehensive technical documentation. The company also offers after-sales service, such as installation instructions, spare parts, servicing, and performance audits to guarantee long-term reliability.

Q5. Can axial flow pumps from Waterman Engineers Australia be customized for marine or corrosive environments?

Yes. For marine, desalination, or chemically aggressive applications, Waterman Engineers Australia offers specialist axial flow pumps with specific coatings or materials, such as epoxy-coated carbon steel, stainless steel, or duplex alloys. The internal parts are chosen by fluid content to enhance life and resist corrosion, and the impeller and shaft arrangements are optimized to the application’s flow profile.
