Evaporator Technique for Effluent Treatment
A wastewater evaporator is a device that removes water from liquid effluent by turning it into vapour and leaves pollutants behind. A wastewater evaporator’s purpose is to minimize the volume of waste products and do wastewater recovery.
Overview
Evaporation technology can be used to reclaim precious items or separate dangerous materials through wastewater flows. Evaporation has been examined as an alternate technique in a rising group of wastewater treatments techniques. It can be used to concentrate or remove salts, other harmful elements, and heavy metals from a solution. It could also be used to extract beneficial by-products out of a solution or to condense municipal wastewater before they are treated further and disposed of. Most of the technology’s uses also create a high-quality, reusable distillate, which is a critical characteristic in areas where water preservation is a top priority. Evaporation concentrates a solution by vaporizing a fraction of the solvent, generally water. It produces salty liquor that includes nearly all of the dissolved salts from the initial input. Natural solar evaporation ponds or available commercial evaporation technology can be used to complete the process. Solar evaporation ponds are typically constrained by potential odour issues, availability of land and expense or meteorological and climatological circumstances; while mechanical evaporators are small, efficient, and reliable.
Categories of Evaporation
Evaporators have diversity of sizes and shapes. The parameters that are used to classify evaporators are following:
- The layout of the heat exchanger
- The technology utilized to transmit energy towards the solution
Categories of evaporators are following:
1. Vertical Tube Falling Film
A thin film of recirculating liquid is injected at the top of the vertical tube bundle. It drops down inside the tubes as a thin layer. The water inside the liquid is vaporized as it receives heat through steam accumulating on the exterior of the tubes. This type of evaporator is typically used to concentrate high viscosity fluids and heat sensitive liquids with short residence periods.

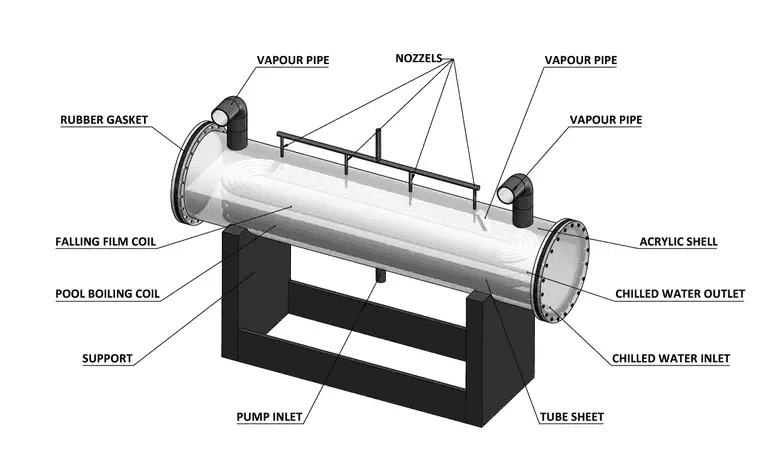

2. Horizontal Tube Spray Film
The heated recirculating liquor is sprinkled in front of a horizontal flow channel; conveying low-pressure vapours and concentrating water vapor inside the tube. Vapor from the evaporator compartment can be condensed and utilized as the heat source in the stage where it has been produced but can also be used as vapor in a subsequent effect. Scale that forms outside the tubes can be eliminated using chemical cleaning regularly. Horizontal tube layouts can be used in places with limited headroom, and they’re especially useful in indoor installations.
3. Forced Circulation
Recirculating liquor is circulated via a heat exchanger beneath pressure to minimize boiling and consequent scale formation inside the tubes. The liquor is then passed through a separator chamber that operates at a significantly reduced pressure or relative vacuum. This enables water to evaporate quickly and insoluble crystals to form in the liquor. Forced circulation evaporators have been used for applications that require high solids accumulation or applications that involve huge quantities of suspended matter. Due to various their high recirculation rates, energy prices for forced circulation systems can be higher than other evaporator systems.
4. Hybrid and Combined Systems
It is frequently possible to combine diverse range of evaporators. Combining different systems decrease capital and operational costs to. accomplish specific treatment goals. One typical setup is a falling film evaporator which is accompanied by forced circulation crystallizer. In this method, the evaporator reduces the effluent stream to 20-30% particulates, and a crystallizer reduces it even further a solid. Steam evacuated from the evaporator can be used to power the crystallizer, lowering energy expenditures.
As one of the best zld suppliers, in zero liquid discharge situations, hybrid designs have become more common. An evaporator or evaporator/crystallizer may be used in a hybrid system, which is followed by a reverse osmosis with electro dialysis preconcentration stage in ZLD System. The preconcentrates concentration, or refuse, has become the evaporator’s supply.
Design and Working Mechanism
Heat is transported from condensing steam toward a fluid at low temperature over a metallic heating surface, which drives the evaporation process. The absorbed heat makes the solvent, (generally water) to vaporize. This leads in rise in the concentration of solutes. The resulting vapour can either be released into the atmosphere or concentrated to be reused.
Mechanical evaporation is an energy demanding method of concentrating liquids. Hence several energy options should be considered when selecting most effective evaporator. One kilogram of condensed water will evaporate one kilogram of water from the solution in an ideal state. The steam economics or effectiveness of such a system is 1:1.
The economy of an evaporator can be improved with the help of effects. The vapour from first impact is used as the vapor source for precedence in a multi-effect method. Evaporation continues when the temperature drops in each subsequent stage since the boiling point and pressure drop as well.
Extra consequence improves the energy performance of the system. A dual effect evaporator uses about half the steam that a single-effect unit does, and it has a theoretical efficiency of 2. The amount of impacts can be increased until the capital cost of next impact outweighs the economic benefits.
Another established way for minimizing energy input is the use of vapour compression. The vapour emitted from the evaporator compartment is compressed to the desired pressure/temperature levels in the heat exchanger.
When it comes to vapour compression, mechanical compressors are the most used. Positive displacement, centrifugal, and axial compressors are all available. In many cases, an evaporator system that uses mechanical vapour compression will simply need outside vapor source to start off. A modest boiler or resistive heater inside the evaporator tank may generally do this. A high-pressure steam jet thermal compressor could also be investigated. The usage of a thermal compressor seems roughly comparable to the addition of a second evaporator.
Excess heat from the other process streams can also be recovered to reduce evaporation expenses. Hot process fluids, rather than steam, might be circulated through heating tunnels to recuperate heat and transmit this to the fluid to be condensed, or heat from hot flue gases could be transformed to vapors in a re-boiler and then used in an evaporator.
Advantages
- Production of high-grade distillate is among the most important advantages. The distillate dissolved solids in most installations is less than 10 mg/L, and even less than 2 mg/L in certain situations.
- It’s always recyclable and can be used in industrial or temperature control applications.
- Distillate can be recycled for process washing in one metal finishing installation at a volume ten times lower than the amount of city water necessary to complete the operation.
- Evaporators can reduce the amount of controlled waste residues produced while also increasing the amount of valuable metals that can be recovered from those wastes.
- Evaporation is less sensitive to oil traces and does not generate regeneration wastes that need to be treated.
- The following can be effectively treated with evaporators
- Chemical and power plant wastewaters
- Wasted pulp liquors
- Metal finishing wastes
- High soluble BOD streams
- Emulsified oil streams
- Nonvolatile aqueous organic or inorganic streams containing acids, bases and colors
Application
1. Zero Liquid Discharge (ZLD)
Governing industrial effluent release has become stricter in recent times. Permits from NPDES are required for all direct dischargers. Permitted discharge limits will be reduced when the NPDES permits are renewed. So, dischargers must consider their wastewater generation as well as potential future changes. Evaporators can be placed in various industrial components to achieve zero liquid discharge of effluent. The falling film evaporator for zero discharge system is typically accompanied by a crystallizer and a filter press in these systems. A crystallizer can be replaced with a rotary spray dryer in zld water treatment plants or Zero Liquid Discharge Systems. The water level for a composite ZLD system is being used to remediate a power plant’s central cooling disarray.
2. Metal Finishing
The electro-less plating technique is widely used in the metal processing sector, such as in the production of printed circuit. This results in a difficult-to-treat waste stream including chelating agents such as ammonia or organic acids, which inhibit heavy metal hydroxides from precipitating normally. Prior to standard treatment, extra chemicals must be applied to decompose the chelating compounds. Evaporation has been successfully employed on such wastes without the use of any other chemicals.
3. Plate Evaporators
Stripping applications, deodorization and extracting monomers from polymers are all common uses for gasketed plate evaporators. Fruit juices, syrups, fruit purees, coffee, and milk are examples.
4. Mechanical Vapor Recompression
Mechanical Vapor Recompression is used in following industries:
- dairy industry
- brewing industry
- sugar industry
- saline industry
- pulp industry
- chemical industry
- alcohol industry
5. Long Tube Vertical Evaporators
Several applications of Long Tube Vertical Evaporators are following:
- cane sugar syrups concentrations
- black liquor in the paper plants
- electrolytic and nitrates tinning liquors
Frequently Asked Questions
Q. What is an evaporator technique for effluent treatment?
The evaporator technique is a process used to separate water from industrial effluents by utilizing heat to vaporize the water, leaving behind concentrated pollutants.
Q. How does the evaporator technique work?
The technique involves heating the effluent in an evaporator vessel, causing the water to evaporate. The water vapor is then condensed and collected as clean water, while the concentrated pollutants are left behind in the vessel.
Q. What are the benefits of using an evaporator for effluent treatment?
Evaporators can significantly reduce the volume of effluent, making it easier and more cost-effective to manage and dispose of the concentrated waste. It also allows the recovery of clean water for reuse.
Q. What is a multi-effect evaporator?
A multi-effect evaporator is a type of evaporator that uses multiple stages (effects) to further increase the efficiency of water evaporation and reduce energy consumption.
Q. How does a multi-effect evaporator differ from a single-effect evaporator?
Unlike single-effect evaporators that use only one stage of evaporation, multi-effect evaporators use the vapor generated in one stage as the heating medium for subsequent stages, leading to energy savings.
Q. What are the typical components of an evaporator system?
An evaporator system includes the evaporator vessel, heat source (steam, hot water, etc.), condenser, circulation pumps, and a system to collect the condensed water and concentrated effluent.
Q. Which industries commonly use evaporator techniques for effluent treatment?
Industries such as chemical manufacturing, food processing, pharmaceuticals, petrochemicals, and textile processing often use evaporator techniques for effluent treatment.
Q. Can the evaporator technique handle effluents from various industries?
Yes, the evaporator technique can effectively treat effluents from various industries as long as the proper design and adjustments are made to accommodate specific contaminants.
Q. What is the purpose of zero liquid discharge (ZLD) systems in effluent treatment?
Zero liquid discharge systems aim to eliminate any liquid waste discharge from industrial processes, ensuring all water is either recycled or evaporated, leaving behind only solid waste.
Q. Can the evaporator technique achieve zero liquid discharge (ZLD) for industries?
Yes, the evaporator technique, especially when combined with other treatments like crystallization and reverse osmosis, can enable industries to achieve zero liquid discharge.
Q. What are the primary uses of evaporators?
The primary uses of evaporators include concentrating liquid solutions, separating solvents from solids, recovering valuable products from solutions, and treating industrial effluents.
Q. How are evaporators utilized in the food industry?
In the food industry, evaporators are used to concentrate fruit juices, milk, and other liquids, as well as to dry food products like instant coffee and powdered milk.
Q. What role do evaporators play in the chemical industry?
The chemical industry uses evaporators for solvent recovery, concentrating chemical solutions, and processing various chemical products.
Q. Can evaporators be applied in the pharmaceutical sector?
Yes, evaporators are commonly used in the pharmaceutical industry for solvent recovery, concentrating extracts, and purifying drug substances.
Q. How are evaporators beneficial in the textile industry?
In the textile industry, evaporators help in recovering dyes and chemicals from wastewater, reducing environmental impact, and allowing for their reuse.
Q. What is the significance of evaporators in the desalination process?
Evaporators are essential components of multi-stage flash (MSF) and multi-effect distillation (MED) desalination processes, helping convert seawater into fresh water.
Q. Are evaporators employed in the production of chemicals like sodium hydroxide?
Yes, evaporators are used in the production of chemicals like sodium hydroxide (caustic soda) to concentrate the solution and recover the product.
Q. How are evaporators utilized in the dairy industry?
Evaporators play a crucial role in the dairy industry for concentrating milk and other dairy products, resulting in products like condensed milk and evaporated milk.
Q. Can evaporators be employed in wastewater treatment plants?
Yes, evaporators are used in some wastewater treatment plants to reduce the volume of wastewater sludge and facilitate disposal or further treatment.
Q. What is the significance of evaporators in the pulp and paper industry?
Evaporators are essential in the pulp and paper industry for concentrating black liquor, a byproduct of the pulping process, to recover chemicals and produce valuable products.
Q. What is a multi-effect evaporator?
A multi-effect evaporator is a type of evaporator that uses multiple stages (effects) to further increase the efficiency of water evaporation and reduce energy consumption.
Q. How do multi-effect evaporators work?
Multi-effect evaporators operate by using the vapor generated in one stage to heat the next stage, creating a cascade effect, which allows for significant energy savings.
Q. What are the key advantages of using multi-effect evaporators?
The main advantages of multi-effect evaporators include lower energy consumption, reduced operating costs, and higher evaporation rates compared to single-effect evaporators.
Q. In what situations is a multi-effect evaporator preferred over single-effect evaporators?
Multi-effect evaporators are preferred when dealing with large quantities of feed solution and when energy efficiency is a primary concern.
Q. Are multi-effect evaporators more expensive to install than single-effect evaporators?
While multi-effect evaporators may have higher initial installation costs, their energy savings over time often lead to lower overall operational expenses.
Q. What are the typical industries that use multi-effect evaporators?
Industries such as chemical processing, pharmaceuticals, desalination plants, and wastewater treatment facilities commonly employ multi-effect evaporators.
Q. Can multi-effect evaporators be used for zero liquid discharge (ZLD) systems?
Yes, multi-effect evaporators are often utilized in zero liquid discharge systems as a key component to achieve complete water recycling and minimal waste discharge.
Q. Do multi-effect evaporators require a continuous heat source?
Multi-effect evaporators need a continuous heat source, which is often provided by steam, hot water, or waste heat from other processes.
Q. Can multi-effect evaporators handle a wide range of feed solutions?
Yes, multi-effect evaporators can handle various feed solutions, but adjustments in the operating parameters may be necessary to accommodate specific characteristics.
Q. What maintenance is required for multi-effect evaporators?
Regular inspection, cleaning, and preventive maintenance are essential to ensure the optimal performance and longevity of multi-effect evaporators.
Q. How are evaporators used in the chemical industry?
In the chemical industry, evaporators are used for solvent recovery, concentration of chemical solutions, and crystallization of valuable products.
Q. What role do evaporators play in the pharmaceutical sector?
Evaporators are commonly used in the pharmaceutical industry for solvent recovery, concentration of extracts, and purification of drug substances.
Q. How are evaporators utilized in the food and beverage industry?
Evaporators are employed in the food and beverage industry for concentrating juices, milk, and other liquids, as well as drying food products like instant coffee and powdered milk.
Q. What is the significance of evaporators in the petrochemical industry?
The petrochemical industry uses evaporators for the concentration of various chemical solutions and the recovery of valuable byproducts from refining processes.
Q. How are evaporators beneficial in the desalination process?
Evaporators are vital components of desalination processes like multi-stage flash (MSF) and multi-effect distillation (MED), converting seawater into fresh water.
Q. What role do evaporators play in the textile industry?
In the textile industry, evaporators help recover dyes and chemicals from wastewater, reducing the environmental impact and facilitating reuse.
Q. How are evaporators used in the pulp and paper industry?
Evaporators are essential in the pulp and paper industry for concentrating black liquor, a byproduct of the pulping process, to recover chemicals and produce valuable products.
Q. What is the significance of evaporators in the dairy industry?
Evaporators play a crucial role in the dairy industry for concentrating milk and other dairy products, resulting in products like condensed milk and evaporated milk.
Q. Can evaporators be employed in wastewater treatment plants?
Yes, evaporators are used in some wastewater treatment plants to reduce the volume of wastewater sludge and facilitate disposal or further treatment.
Q. How are evaporators used in the mining industry?
In the mining industry, evaporators are used for the concentration of mineral solutions and the recovery of valuable minerals from liquid streams.
Q. What is the process of recovering water from effluent using evaporation?
The process involves subjecting the effluent to heat in an evaporator, causing the water to vaporize. The water vapor is then condensed and collected as clean water, leaving behind concentrated pollutants.
Q. Can evaporation effectively recover water from all types of effluents?
Evaporation can effectively recover water from many types of effluents; however, the success of the process depends on the specific composition and characteristics of the effluent.
Q. What are the benefits of water recovery from effluent through evaporation?
Water recovery through evaporation helps conserve water resources, reduces the volume of liquid waste, and can lead to cost savings by reusing the recovered water in industrial processes.
Q. Is the recovered water from effluent through evaporation suitable for reuse?
The quality of the recovered water depends on the effluent’s initial composition and the efficiency of the evaporation process. It may require further treatment before reuse.
Q. How does water recovery from effluent contribute to sustainability efforts?
Water recovery from effluent promotes sustainable water management by minimizing the demand for fresh water and reducing the environmental impact of wastewater disposal.
Q. Are there any limitations to using evaporation for water recovery from effluent?
Some limitations include the energy consumption required for evaporation, potential fouling or scaling of evaporator surfaces, and the presence of volatile components in the effluent.
Q. What types of industries can benefit from water recovery through evaporation?
Industries such as textile processing, chemical manufacturing, food and beverage production, and pharmaceuticals can benefit from water recovery through evaporation.
Q. Can evaporation be combined with other treatments for more efficient water recovery?
Yes, evaporation can be integrated with other processes like reverse osmosis, crystallization, and filtration to achieve higher water recovery rates and improved effluent treatment.
Q. Does the effectiveness of water recovery vary based on the evaporation method used?
Yes, the efficiency of water recovery may vary based on the type of evaporator used, such as single-effect, multi-effect, or mechanical vapor recompression evaporators.
Q. How does water recovery through evaporation contribute to regulatory compliance?
Recovering water through evaporation can help industries meet environmental regulations by reducing the discharge of wastewater and pollutants.
Q. What happens when a solvent is present in the effluent to be evaporated?
When a solvent is present in the effluent, it will evaporate along with the water during the evaporation process.
Q. How does the presence of solvents in effluent impact the evaporation process?
The presence of solvents can affect the evaporation process in several ways, including altering the boiling point of the mixture and potentially causing fouling or corrosion in the evaporator.
Q. Can solvents be recovered along with water during the evaporation process?
Yes, solvents can be recovered along with water, provided they have a lower boiling point than water and can be effectively condensed and separated.
Q. Are there any safety considerations when evaporating effluents containing solvents?
Yes, safety considerations include handling flammable or volatile solvents, ensuring proper ventilation, and implementing measures to prevent solvent emissions.
Q. Can the presence of solvents affect the quality of the recovered water?
The presence of solvents may impact the quality of the recovered water, requiring additional treatment steps to meet the desired purity standards.
Q. How can the evaporation process be adjusted for effluents with solvents?
The evaporation process can be adjusted by controlling the temperature, pressure, and residence time to optimize solvent recovery and minimize any negative effects.
Q. What are the challenges of evaporating effluents with high solvent concentrations?
Challenges may include increased energy requirements, potential corrosion of equipment due to solvent exposure, and the need for efficient solvent separation methods.
Q. Can solvent recovery during evaporation lead to cost savings for industries?
Yes, solvent recovery can result in cost savings for industries by reusing valuable solvents and reducing the need to purchase new ones.
Q. What are some common solvents present in industrial effluents that can be recovered through evaporation?
Common solvents found in industrial effluents include ethanol, methanol, acetone, and various organic compounds used in chemical processes.
Q. What are the key parameters to consider when using evaporation for effluent treatment?
Key parameters include effluent composition, flow rate, temperature, pressure, residence time, heat source, evaporator type, and post-treatment requirements.
Q. How does the effluent composition affect the evaporation process?
The effluent composition determines the boiling point of the mixture and the types of contaminants that need to be separated during evaporation.
Q. What is the impact of flow rate on the efficiency of evaporation?
The flow rate affects the residence time of the effluent in the evaporator, influencing the degree of water evaporation and concentration of pollutants.
Q. How does temperature control impact the evaporation process?
Temperature control is crucial for achieving the desired evaporation rate, avoiding thermal degradation of sensitive components, and ensuring solvent recovery.
Q. What role does pressure play in the evaporation of effluents?
Pressure affects the boiling point of the effluent, which can be adjusted to optimize the efficiency and energy consumption of the evaporation process.
Q. How does the residence time affect the evaporation process?
The residence time determines how long the effluent stays in the evaporator, impacting the degree of water evaporation and concentration of pollutants.
Q. What are the different heat sources used for evaporation, and how do they vary in efficiency?
Heat sources can include steam, hot water, or waste heat from other processes. Steam is commonly used and generally more efficient due to its high latent heat.
Q. How does the choice of evaporator type affect the evaporation process?
Different evaporator types, such as single-effect, multi-effect, and mechanical vapor recompression evaporators, vary in efficiency, energy consumption, and the ability to handle specific effluents.
Q. What post-treatment steps are often required after evaporation for effluent treatment?
Post-treatment steps may include filtration, crystallization, reverse osmosis, or other processes to further purify the recovered water and concentrate pollutants.
Q. Can evaporation be integrated into a zero liquid discharge (ZLD) system?
Yes, evaporation is a key component of zero liquid discharge systems, allowing industries to achieve complete water recycling and minimize waste discharge.
Q. How can evaporation parameters be optimized for maximum efficiency?
Evaporation parameters can be optimized through process modelling, experimental testing, and continuous monitoring to achieve the desired treatment objectives.
Q. What safety measures are important to consider during the evaporation process?
Safety measures include handling hazardous chemicals and solvents, providing proper ventilation, using explosion-proof equipment, and implementing emergency shutdown procedures.
Q. What are the potential environmental impacts of evaporation for effluent treatment?
The potential environmental impacts include greenhouse gas emissions from energy consumption and the disposal of concentrated pollutants.
Q. How can energy efficiency be improved in evaporation processes for effluent treatment?
Energy efficiency can be improved by using waste heat from other processes, adopting heat integration techniques, and choosing the appropriate evaporator type.
Q. Are there any limitations or challenges in using evaporation for treating effluents?
Limitations and challenges include the need for proper effluent characterization, equipment corrosion, scaling or fouling, and the complexity of treating effluents with varying compositions.
Q. What is Waterman Engineers Australia’s Multi-Effect Evaporator (MEV)?
Waterman Engineers Australia’s Multi-Effect Evaporator is an advanced evaporation system designed for efficient water and solvent recovery from industrial effluents.
Q. How does the MEV work?
The MEV utilizes multiple stages of evaporation to concentrate effluent efficiently. It uses the vapor generated in one stage as the heat source for subsequent stages, resulting in significant energy savings.
Q. What are the key features of Waterman Engineers Australia’s MEV?
Some key features include robust construction, automated operation, precise temperature control, and the ability to handle a wide range of effluent compositions.
Q. How is the MEV different from conventional single-effect evaporators?
Unlike single-effect evaporators, the MEV’s multiple-stage design enables higher energy efficiency and lower operating costs by utilizing latent heat from vapor to drive subsequent stages.
Q. What industries can benefit from using Waterman Engineers Australia’s MEV?
The MEV is suitable for industries such as chemical processing, pharmaceuticals, food and beverage, textile, and mining, where efficient effluent treatment and water recovery are essential.
Q. What are the advantages of using Waterman Engineers Australia’s MEV for effluent treatment?
The MEV offers reduced energy consumption, lower operational costs, higher water recovery rates, and the ability to achieve zero liquid discharge (ZLD) in industrial processes.
Q. Can Waterman Engineers Australia’s MEV handle effluents from different industries?
Yes, the MEV is designed to handle a wide range of effluents from different industries by adjusting operating parameters and employing suitable materials of construction.
Q. How does the MEV contribute to a zero liquid discharge (ZLD) system?
Waterman Engineers Australia’s MEV plays a crucial role in ZLD systems by efficiently evaporating water from effluents, leaving behind concentrated solids for further disposal.
Q. What types of effluents can the MEV process for ZLD systems?
The MEV can process various types of effluents, including those from chemical plants, pharmaceuticals, textiles, pulp and paper, and wastewater treatment plants.
Q. Is Waterman Engineers Australia’s MEV customizable to specific industry requirements?
Yes, the MEV is customizable to meet specific industry needs, including the capacity, size, and materials of construction required for efficient effluent treatment.
Q. How does Waterman Engineers Australia ensure the reliability of their MEV systems?
Waterman Engineers Australia conducts rigorous testing, quality checks, and employs industry-leading materials to ensure the reliability and durability of their MEV systems.
Q. Can the MEV be integrated into existing industrial processes easily?
Yes, Waterman Engineers Australia’s MEV is designed for ease of integration into existing industrial processes, minimizing disruptions during installation.
Q. What post-treatment steps are recommended after using the MEV for effluent treatment?
Depending on the specific effluent composition, post-treatment steps may include crystallization, filtration, and reverse osmosis to achieve higher water purity and recover valuable byproducts.
Q. Does Waterman Engineers Australia provide technical support and maintenance for their MEV systems?
Yes, Waterman Engineers Australia offers technical support, maintenance services, and training to ensure optimal performance and longevity of their MEV systems.
Q. What certifications and standards does Waterman Engineers Australia’s MEV comply with?
Waterman Engineers Australia’s MEV systems are designed and manufactured to comply with relevant industry standards, safety regulations, and environmental requirements. They may also hold certifications such as ISO and CE.
